Digital Watercurtain-watergraphic
from watershow.de

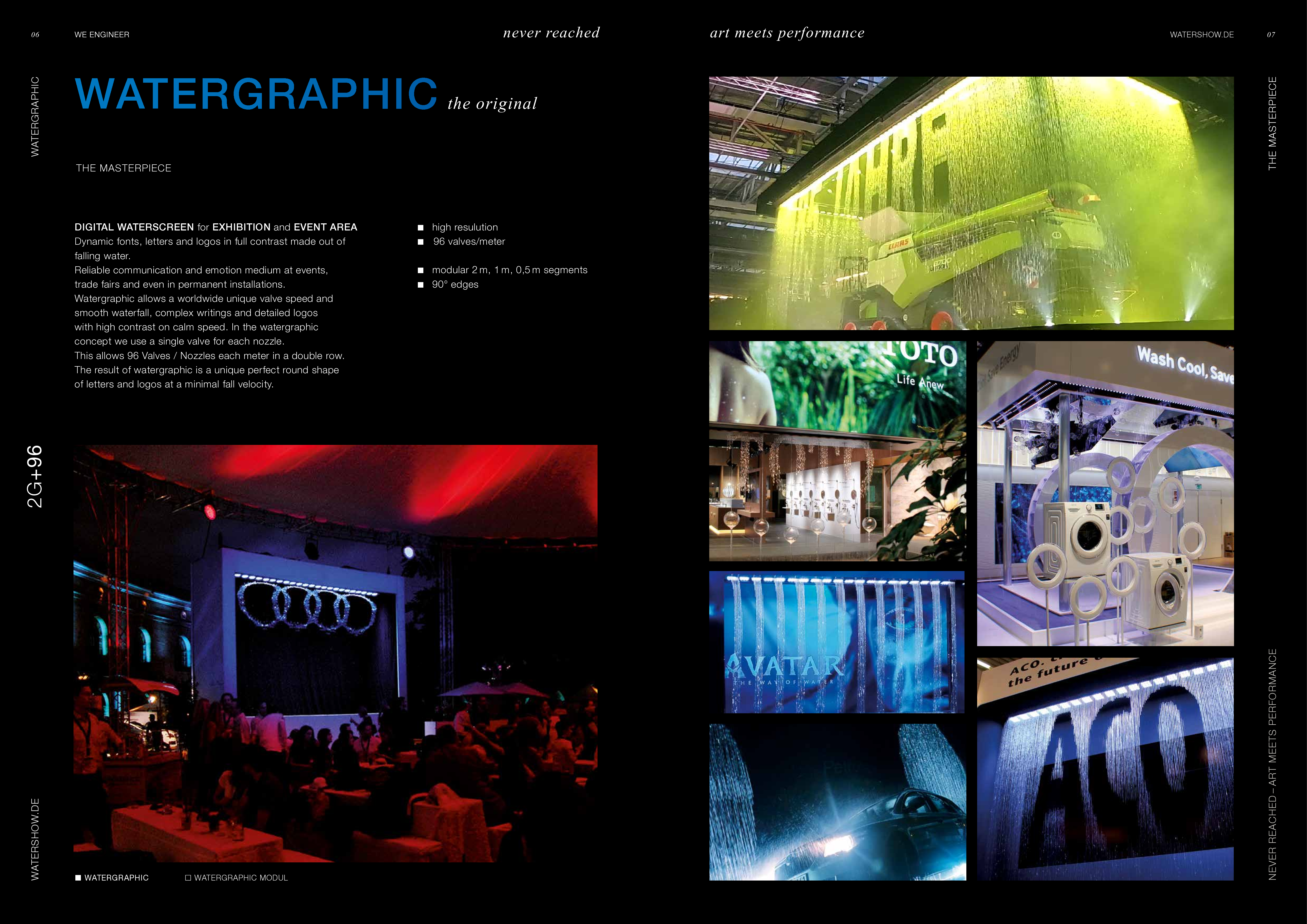

Watergraphic 2G+96

Resolution 96 Valves per meter For more complex writings and logos with maximum contrast
For example in a booth, near the public, short distance, many little letters, complex logos, as a TV background, etc.

Eye catcher at product-presentations, trade fairs and pedestrian precincts. The watergraphic with sharp outlines and maximum resolution is intended for an application with a short distance.
- For complex writings and logos with high contrast
- To 100% product by watershow.de - made in Germany
- Low water pressure system,i.e. graphics fall only by gravity
- Unique control system, all valves are started at the same time
- 100% self developed software ( no Windows )
- Low energy consumption
- DMX OUT for absolute light synchronism
- High end light system, only from above
- Single nozzles at each valve for horizontal lines and sharp outlines
- Easy programming by import of BMP files
- High-speed valves- opens in 2-5 milliseconds
- In-house developed single solenoid valve with self-purification effect

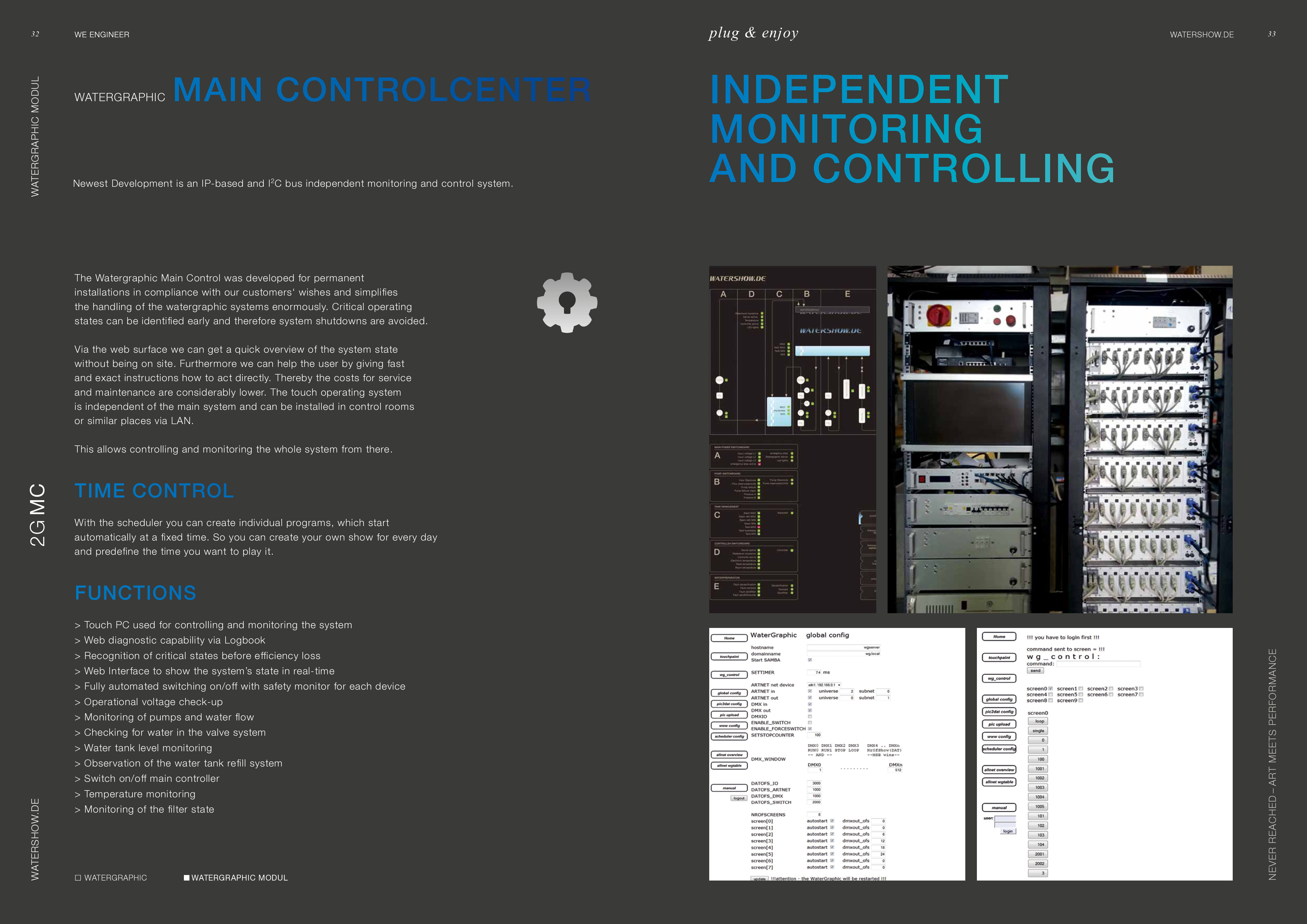

- In-house developed control system and software
- External interfaces like DMX, Artnet, SPS and UDP
- Suitable for short distances to spectators

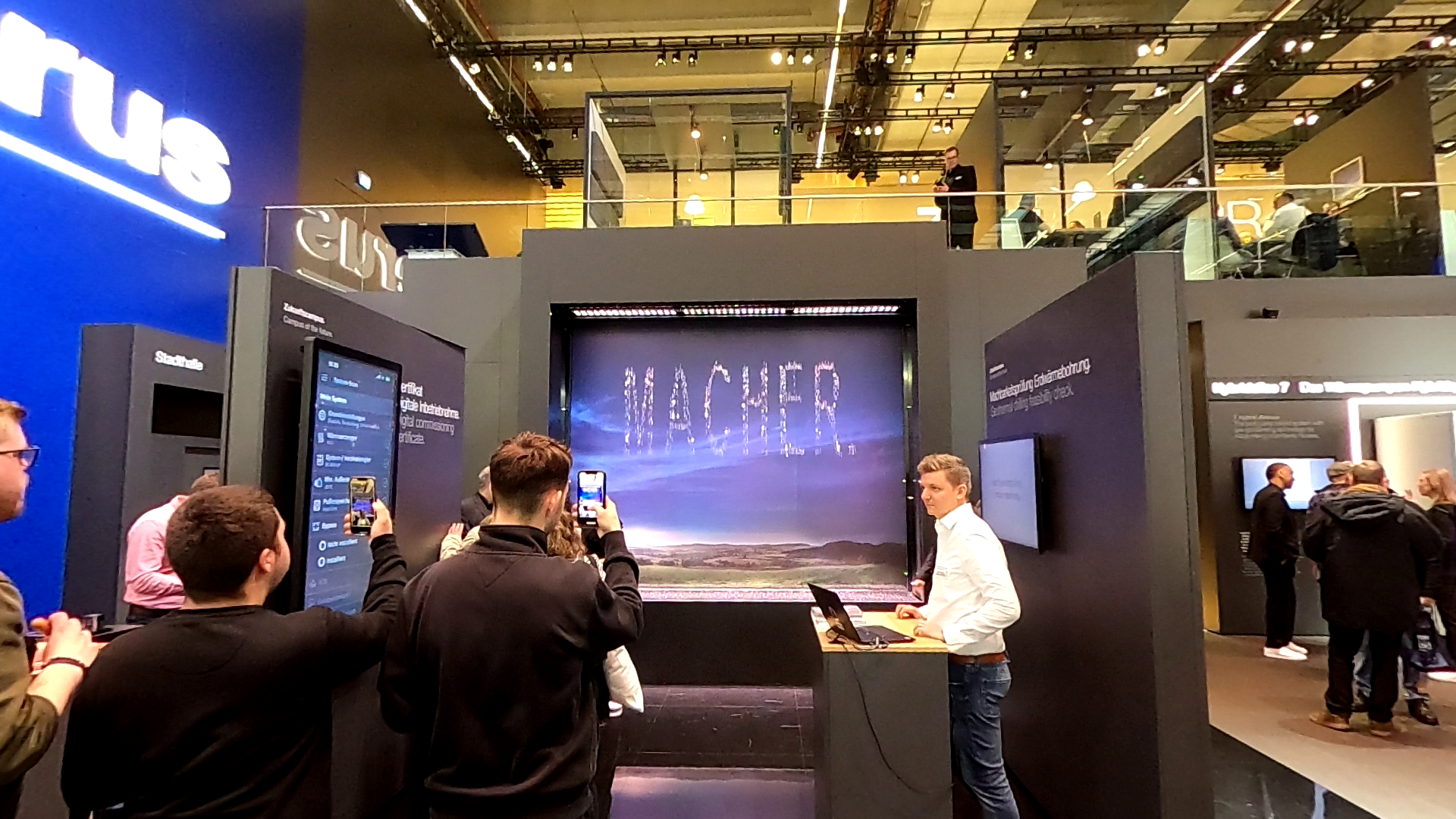

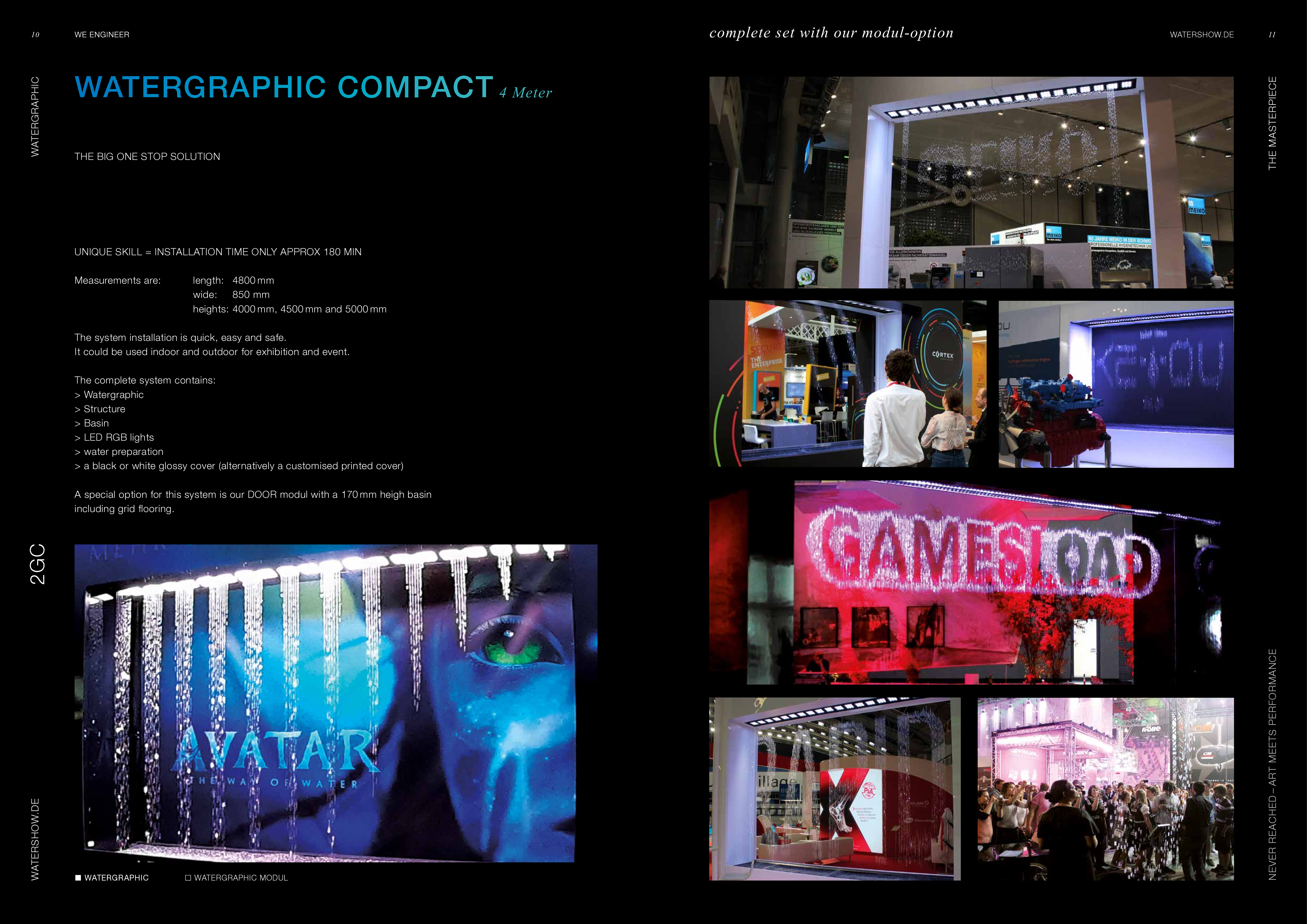

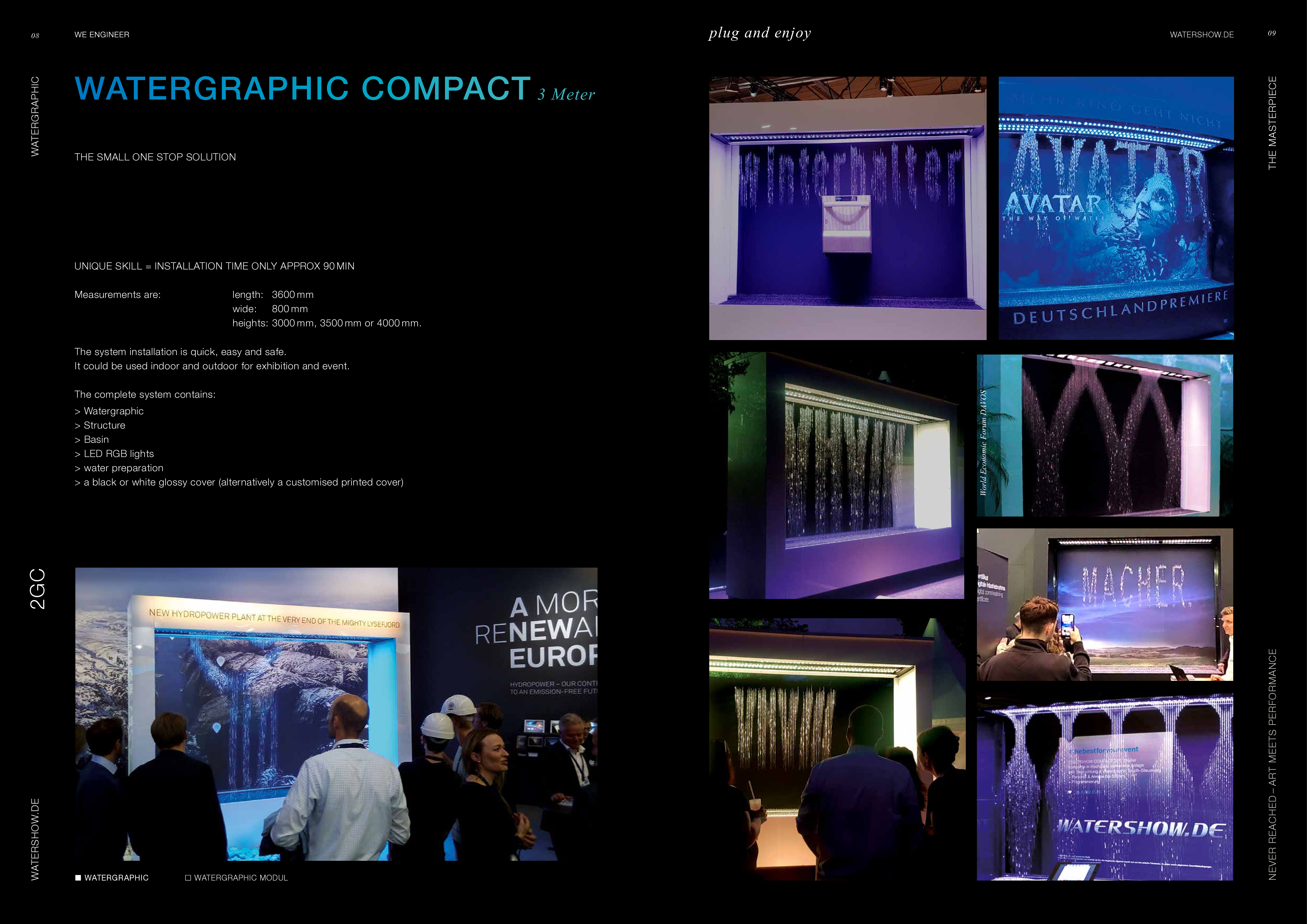

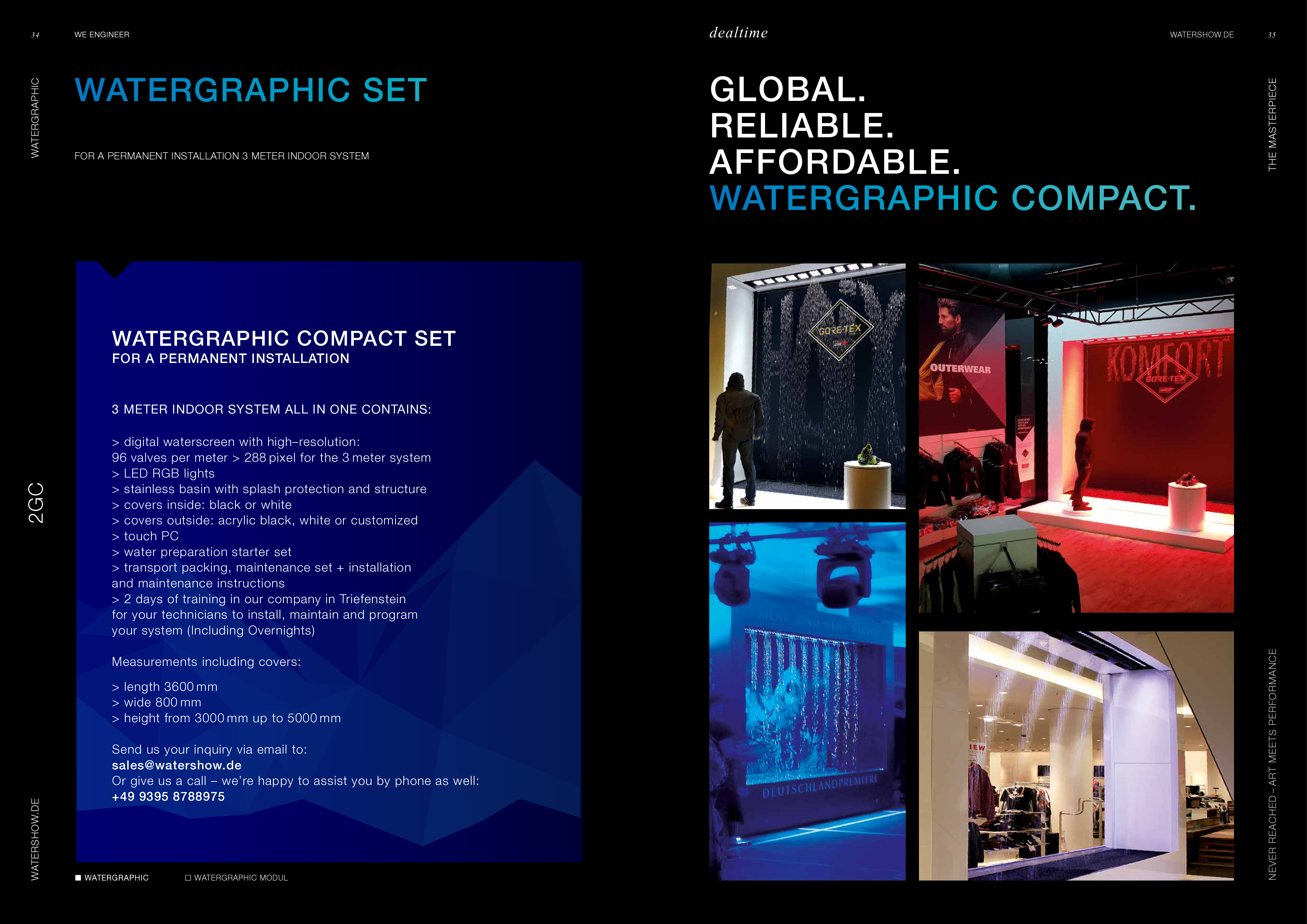

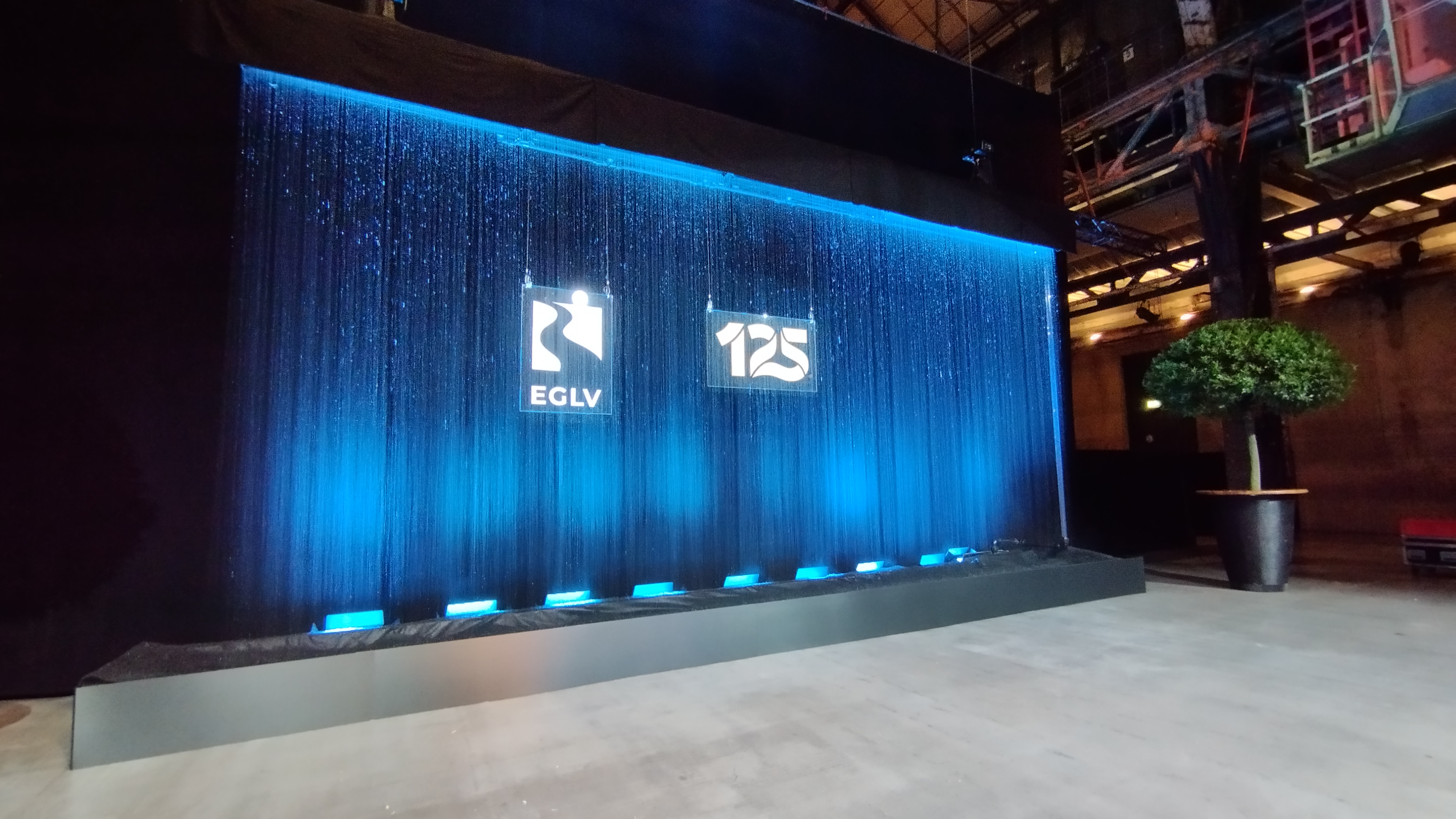

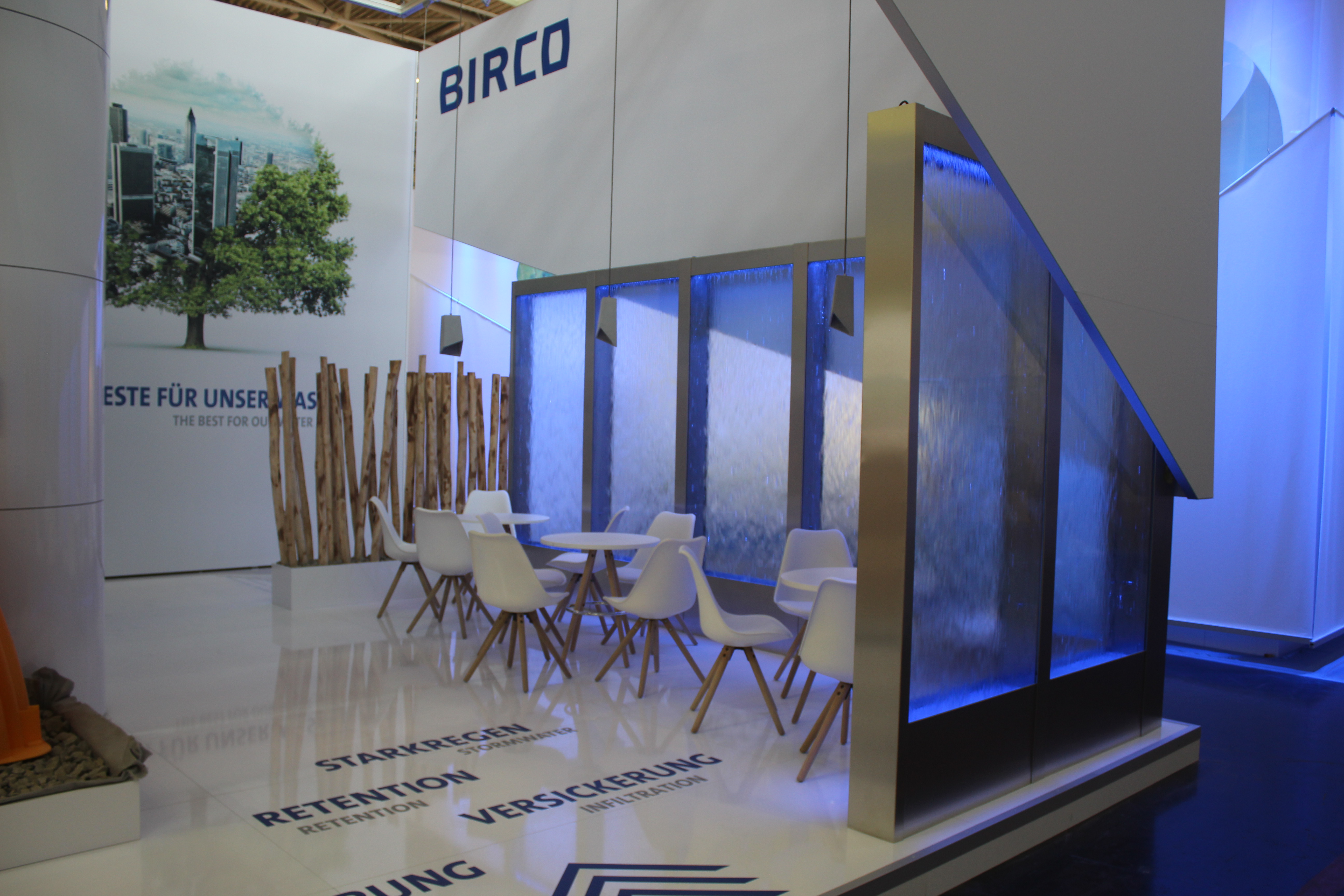

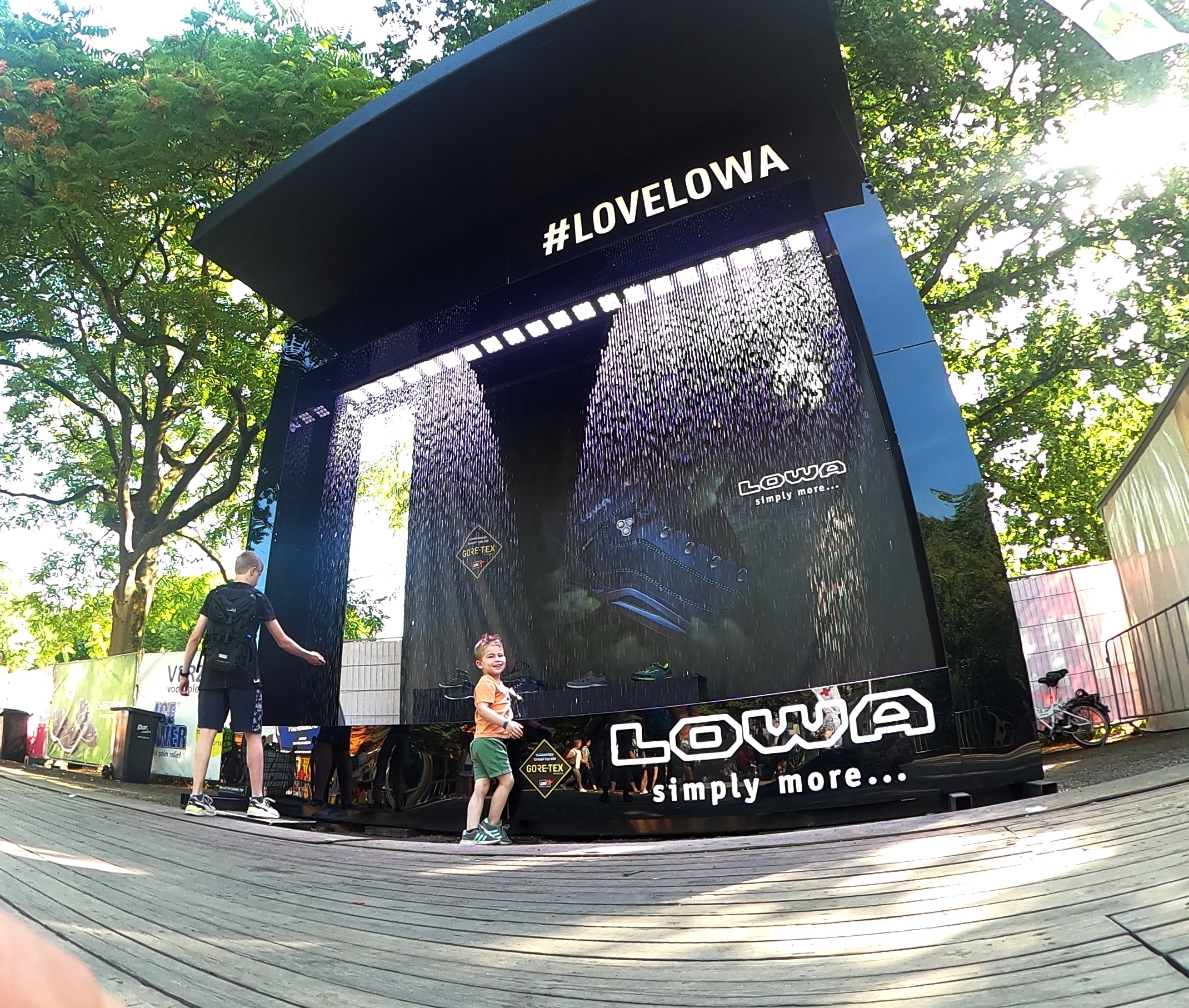

Watergraphic Compact

All-in-one Solution, easy and uncomplicate.

Resolution 96 valves per meter
Watergraphic with frame and cover.
A complete solution with housing and quick installation for exhibitions and events.
Product exclusive by watershow.de
Version 2GC Compact 4m:
Dimensions:4.60m long and 4m high
Resolution: 384 Pixel per 4m
Construction depth only 800mm
Including pump,tubes,control unit,wiring and water basin made of aluminium
with splash protection Integrated LED RGB Lights
Free standing supporting with covering,available in glossy black or white
Version 2GC Compact 3m:
Dimensions:3.60m long and 3m high
Resolution: 288 Pixel per 3m
Construction depth only 800mm
Including pump,tubes,control unit,wiring and water basin made of aluminium
with splash protection Integrated LED RGB Lights
Free standing supporting with covering,available in glossy black or white

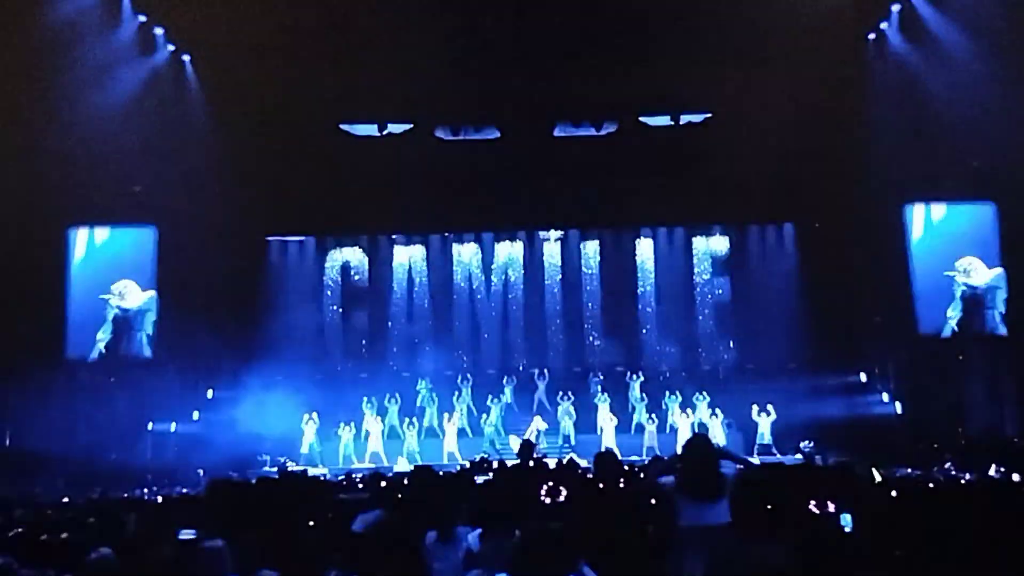

2G48 Watergraphic Truss

a special developed event system for tour and stage use with ultra-short setup time thanks to our Truss system technology

Resoltion 48 pixel/meter
Main unit is an 760x550 Truss, where is integrated the nozzle system,
filter elements and the complete electronics.
Only a few moments to connect the 2m Truss segments and the system is ready for use.
So e.g. a 21m system has a built-up time under 70 minutes.

2GR Watergraphic curved

Resolution 48 valves per meter

By the standardized segmentation it is possible torealize even curves, circles and special individual shapes.
Indoor / Outdoor application
Quick and easy installation because of optimised component
s As stage background and for simple writings 48 nozzles per metre = 288 pixels per 6 m width
ULTRA Speed = 4 msec/line
Standard resolution 140 lines/sec

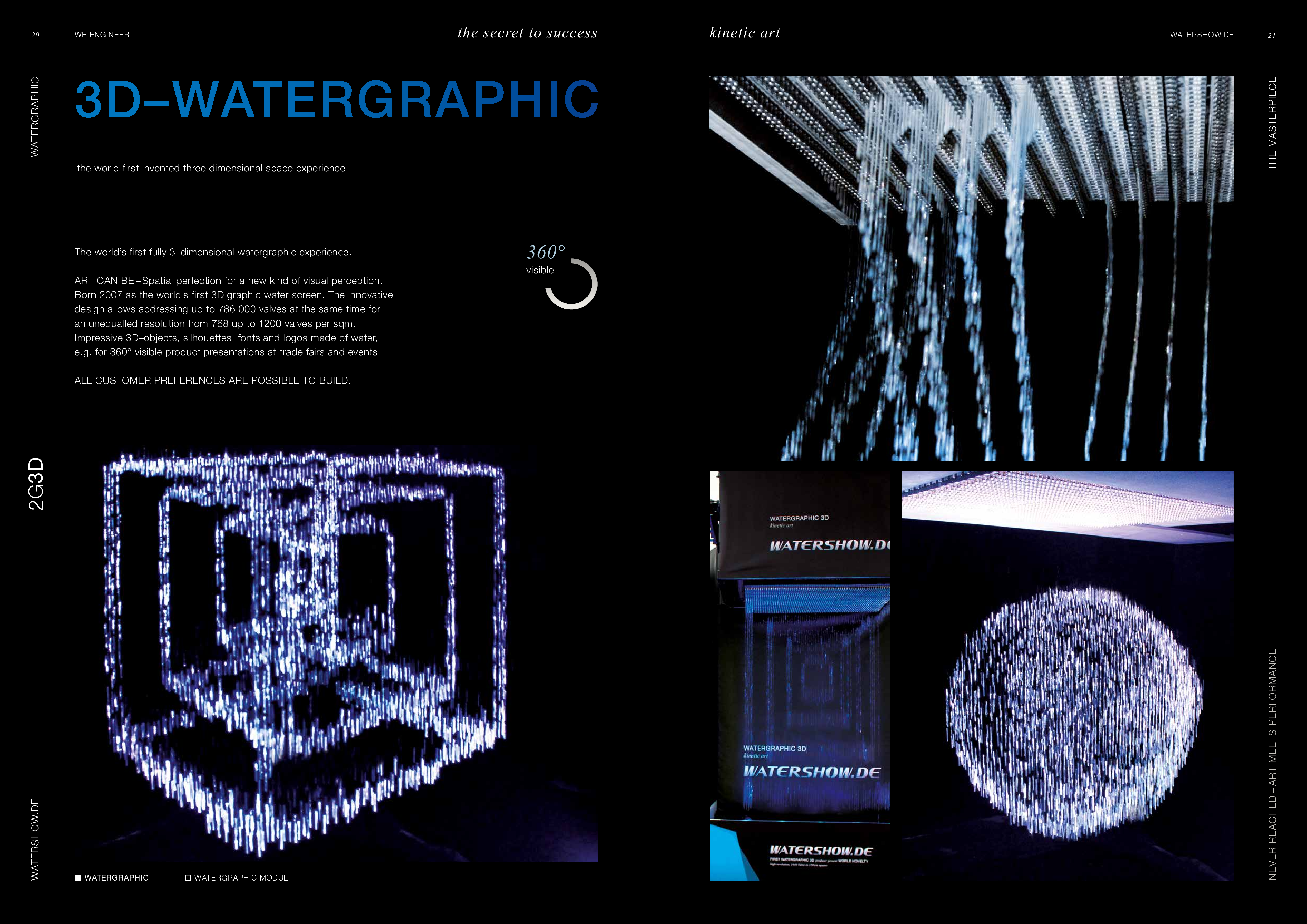

Watergraphic 3D

Born 2009 as world’s first 3D graphic waterscreen

2G3D Watergraphic 3D -Resolution 1440 valves
72 Valves in 20 rows at 1500x1500mm surface area
Due to the asynchronous layout the outcome has a better depth effect.
It just seems more compact because the space between the gaps is missing
Impressive 3D-objects, silhouettes, fonts and logos made of water, e.g.
for 360° visible product presentations in the field of trade fair installations and event.
World-novelty, fascinating choreographies such as complete vehicles in 3D

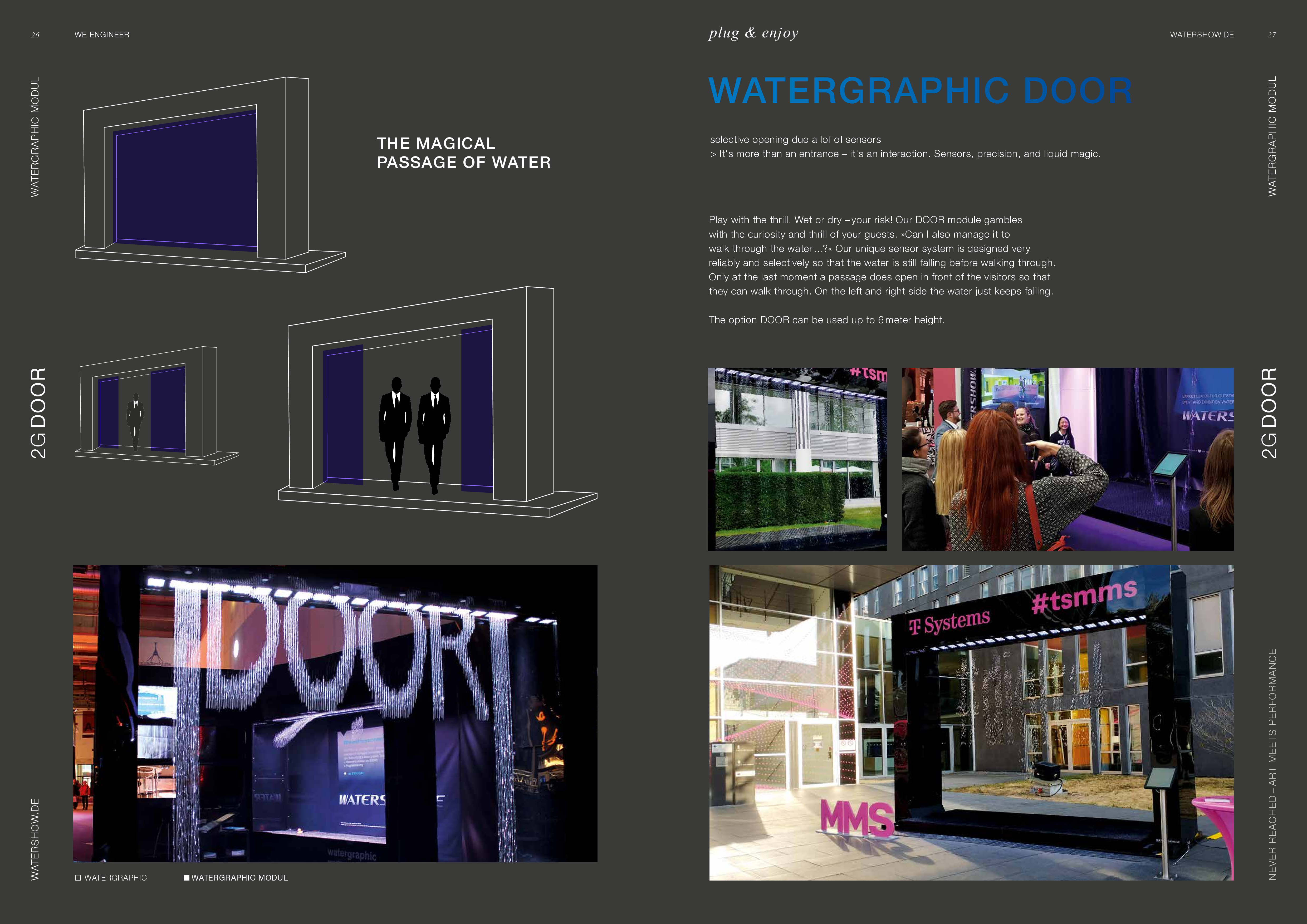

Watergraphic DOOR

ultra-fast sensor system for safe passage.
A special sensor unit defines a range as passage through the waterscreen.
This happens in both directions and makes a safe passage through the watergraphic possible.
For the first time this system was used at the Pedrollo firm event in Verona.
By this creative passage the visitors arrived into the actual event location without getting wet.
